Quick Swap
The Quickswap is synonymous with savings and getting the most for your money from your equipment. You no longer need to buy expensive towing & recovery equipment when all you mainly need is a truck for towing… the Quickswap does it for you at a fraction of the cost.
Advantages:
- Strength: Same or better lift capacity as most heavy-duty wreckers.
- Savings in equipment costs : The same truck can be used for towing or pulling trailers.
- Savings in fuel: Save thousands of dollars a year with equipment as light-weight as the Quickswap.
- Savings in tire use :Due to its light weight, the Quickswap creates less pressure on the tires, which means less use and a decrease in the cost of tire replacement.
- Savings in insurance : Save a bundle by not having to insure expensive equipment.
- Best payload : Its light weight will allow you to cross the scales smiling.
- Standard Equipment
- Specifications
- Optional Equipment
- Technical Graphs
Standard Equipment
- Power elevation
- Power extension
- Power fold
- Power tilt
- Front stands
- Removable
- Manual controls
- Fork storage holders
- Tie-down chains
- Shot blasted & epoxy primer paint
Specifications
Heavy Duty Quickswap
- Minimum wheelbase : 250"
- Double frame recommended
- Reach fully retracted : 73"
- Reach fully extended : 111¾"
- Structural rating fully retracted : 35,000lbs
- Structural rating fully extended : 15,000lbs
Super Heavy Duty Quickswap
- Minimum wheelbase : 275"
- Double frame recommended
- Reach fully retracted : 86"
- Reach fully extended : 135¾"
- Structural rating fully retracted : 50,000lbs
- Structural rating fully extended : 20,000lbs
Optional Equipment
- 20,000 lb planetary winch
- 25,000 lb worm gear winch
- Recovery Roller guide
- Cable 5/8" x 200'
- Remote control
- 72" tool box
- Wet line kit
- Second front receiver
- Stabilizer grip
- Tow lights & cord
- Additional towing attachments
- Installation
- Stainless steel package

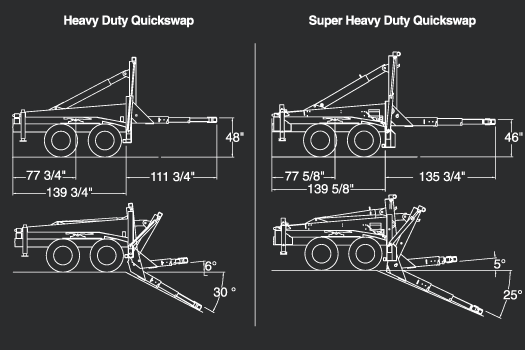

Technical Graphs
