Sliding rotator 60/80 SR - Heavy Incident Manager
Full-blown power! The 60/80 is the most powerful Heavy Duty in the industry. With a boom tested at 160,000lbs, a double outrigger spread of 229"x 269" that is the widest in the industry and exceptional quality of construction, this powerful monster can lift over 160,000lbs with unbelievable ease. You truly can do whatever you want to with the load, moving it from one side to the other. You can realize your full capacity and carry out your work with this high-powered ally.
Advantages:
- Incredible reach
- Incredible power
- Self-leveling system and anti-twist system
- Computer controlled hydraulic system
- Full proportional remote control with LCD screen
- Best outrigger spread in the industry
- Best Boom working area in the industry
- Best Boom working height in the industry
- Best Boom lift ratings in the industry
- Best Boom range of elevation in the industry
- 360 degrees of continuous boom rotation with computerized safety device that protects the cab from interfering with the boom
- Sliding system
- Work safely with the auxiliary winches (option)
- Standard Equipment
- Specifications
- Optional Equipment

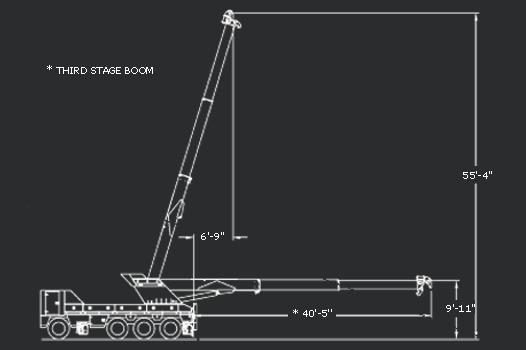

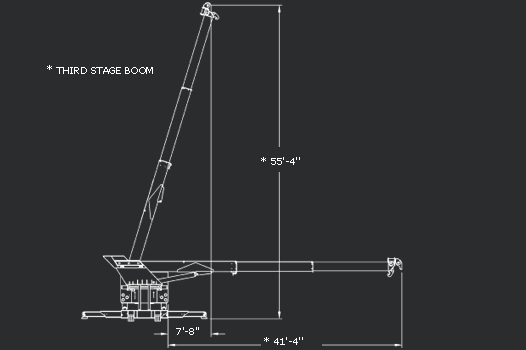

- Technical Graphs
Standard Equipment
- 80 Ton hydraulic wrecker
- 60 Ton Safe lifting capacity (25% security factor)
- 145" sliding boom ; Locks on sliding system
- Dual 50,000lbs planetary two speed winches
- 7/8" x 200` steel cable on each drum
- Air clutch release on winches + cable tensionners
- Anti-twist device ; Self leveling
- Computer controlled hydraulic system ; wireless proportional remote control
- Visual alarm to prevent roll-over
- Dual 8" bore cylinders for power boom elevation
- Lock & Safety valve on elevation and extension cylinders
- "V" shaped Two stage power boom extension
- Directional boom sheave ; Nylon slide on boom
- Dual independent front & rear outriggers with 54" extension each
- Double outrigger spread od 229" x 269"
- Boom basic structural rating retracted : 160,000lbs
- Boom basic structural rating extended : 50,000lbs
- Reach past tailgate : 485"
- Maximum Boom working height to hook : 664"
- 360 degrees of continuous boom rotation
- Lock & safety valve on each cylinder of hydraulic jack legs
- Lubrication fittings on all moving parts
- Lights in levers control & tool boxes
- Heavy duty body 100" wide ; Hi-tensile steel used for structural parts
- Sandblast & Epoxy primer paint & Undercoating underneath the body
- Monocoque body ; Dual control
- Rear mounted recovery anchors ; recovery anchors on rear outriggers
- Recovery anchors on each outrigger for side-pulling
- Federal standard #108 light group ; Mud flaps
- Electric plug & Air plug
Specifications
Wrecker Specifications
- Approximate weight : 50,000lbs
- Approximate weight with Axle-lift: 52,000lbs
- Boom basic structural rating fully retracted : 160,000lbs
- Boom basic structural rating fully extended : 50,000lbs
- Reach past tailgate (3rd stage) : 485 "
- Maximum Boom working height (3rd stage) : 664 "
- Range of elevation : 0° - 73°
Axle-Lift Specifications
- S.H.D. : capacity fully retracted : 50,000lbs ; Reach : 86"
- S.H.D. : capacity fully extended : 20,000lbs ; Reach 136"
Chassis Specifications
- Front Axles : 2 x 20,000lbs minimum
- Rear Axles : Tri-axle is required
- C.A. available : 272" (from cab to center of rearmost axle)
- Triple frame
- Call NRC for more information
Optional Equipment
- Third stage boom
- 2 Auxiliary 20,000lb winches mounted under the boom
- Super heavy duty axle-lift
- Winch covers
- Aluminum checker plate on rear steps
- 2 work lights under the bumper
- Light bars
- Paint
- Installation
Load Chart
