Composite sliding rotator 50/65 CSR
The 50/65 CSR is the only sliding rotator that offers all the well-known power of NRC sliding rotators in a lighter, more attractive and stronger composite body.
Everybody’s dream machine, a tough and versatile unit for recovery work and extra-heavy towing. Especially designed for the most difficult operations, the NRC Flagship "Incident Manager", with its rotating boom and sliding system, will bring you the best "Usable Boom Capacity".
Advantages:
- Composite body
- Removable under lift
- The sliding system combined with a rotator system truly allows you to do virtually anything with the load in the safest way
- Simply slide and rotate to bring the load from one side to the rear or the other side
- Get maximum strength when the load is in the corner where it is so important in most circumstances
- Sliding system
- Double your lifting capacity by working with the boom in its retracted position
- Low-profile outriggers give you better maneuverability by being able to bring the load over them thus reducing the overhang
- Self-leveling system and anti-twist system
- Work safely with the auxiliary winches (option)
- Standard Equipment
- Specifications
- Optional Equipment
- Technical Graphs
Standard Equipment
- Capacity: 65 Tons
- Tandem or Tri-axle body
- Composite side panels
- Safe lifting capacity: 50 Tons(25% security factor)
- Hydraulic front & rear low profile outriggers
- Dual controls
- Minimum CA for tandem and tri-axle body: 246" (from cab to center of rearmost axle)
- 40" tunnel tool box
- Proportional joysticks and remote control
- Sandblast + epoxy primer
- Federal standard #108 light group
- LED Lights
- Lights in standard tool boxes and tunnel tool box
- Panic button
- Wisely positioned electrical rockers switches for (increased) user’s convenience
- 7 marker lights per side
- Curb light on each side
- Door checks
- Mud flaps
- Chain rack
- Fork holders
- Air & Electrical hookups
- Hydraulic pressure gauges
- Direct mount hydraulic pump
- Working hydraulic pressure: 3300-3500 PSI
- Electronic anti-twist device
- Electronic Self-leveling
- Recovery anchors on rear outrigger
- Side Pulling anchors on front and rear outriggers
- Forward compartments
- Compartments over the wheel wells
- Control station lighting
- Tailboard mounted D-rings
- Easy access outrigger pads compartments
- Notched tailboard allowing for increased tilting angle
- Boom angle indicator
Specifications
Boom Specifications
- Two stage boom: standard
- Three stage boom: option
- "V" shape boom
- Boom structural rating fully retracted: 130,000 lbs
- Boom structural rating fully extended (2 stage): 50,000 lbs
- Boom structural rating fully extended (3 stage): 25,000 lbs
- Boom range of elevation: 0-73°
- 360° sheave head
- D-rings on each boom section
Underfilt HD-3
- Capacity retracted: 35,000 lbs
- Capacity extended: 15,000 lbs
- Minimum reach: 73"
- Maximum reach: 111"
Under lift SHD-3
- Capacity retracted: 50,000 lbs
- Capacity extended: 20,000 lbs
- Minimum reach: 86"
- Maximum reach: 136"
Under lift SSHD-4
- Capacity retracted: 70,000 lbs
- Capacity extended: 23,000 lbs
- Minimum reach: 76"
- Maximum reach: 150"
Under lift LSHD-4
- Capacity retracted: 60,000 lbs
- Capacity extended: 20,000 lbs
- Minimum reach: 87"
- Maximum reach: 176"
Chassis Specifications
- Front axle: 20,000 lbs
- Rear axle: 46,000 lbs
- Third (auxiliary) axle: 20,000 lbs
- RBM: 5,500,000 in.lbs
- CA available from 246" (from cab to center of rearmost axle)
- Triple frame Call NRC for more information
Winches & Steel Wire Rope
- Winch capacity (each): 50,000 lbs
- Winch type: planetary
- Wire rope: 7/8" x 200'
- Cable air tensionners
- Air free spools
- 2 speed
Optional
- 2 planetary 20,000 lbs auxiliary winches under the boom
Optional Equipment
- 2 Auxiliary 20,000 lbs winches mounted under the boom
- 3 stage boom
- 3 stage Under lift (HD or SHD)
- 4 stage Under lift (HD or SHD)
- Additional attachments
- Heavy duty tire lift
- Larger tunnel tool box (44" to 72")
- Battery box inside the tunnel tool box
- Light pylon
- Winch covers
- Rear work lights
- Halogen or Xenon lighting under boom
- Stainless dress-up kit
- Aluminum dress-up kit
- Chain package
- Recovery straps
- Snatch blocks
- Light bar
- Paint
- Installation
- NRC rigging box
- Outrigger spades for side-pulling
- Outrigger stabilizer grips (for wooden pads)
- Spreader bars
- Boom work lights
- Tag axle

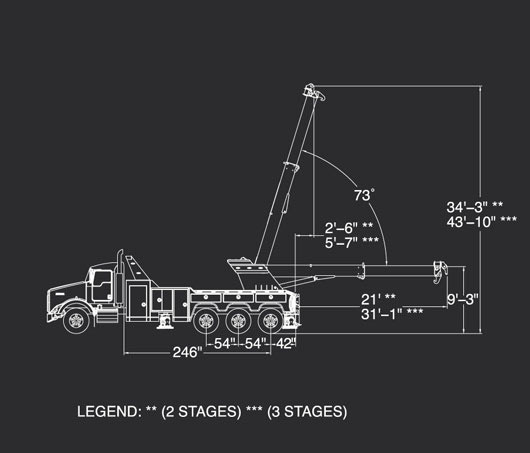

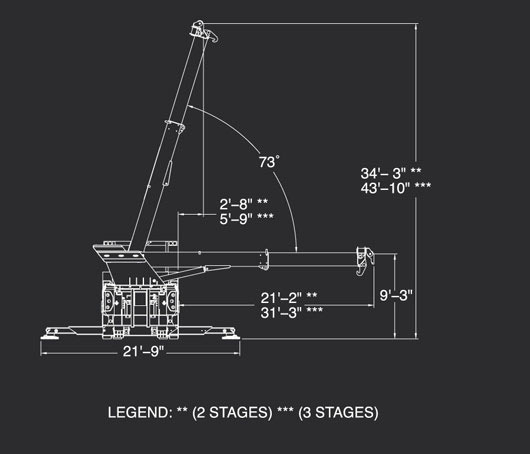

Technical Graphs
